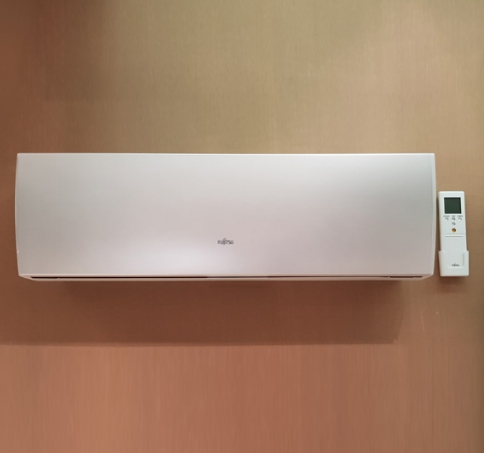

KLIMA INV.F. ASYG14LUCA/AOYG14LUC

995.00€

Proizvođač: Fujitsu

Vrsta proizvoda: Klime

Model: ASYG14LUCA/AOYG14LUC

Jedinica mjere: KOM

Šifra: 2902

Artikal trenutno nije dostupan. Ukoliko želite da provjerite da li je isti moguće ponovo nabaviti odradite poručivanje pa će Vas kontaktirati služba prodaje.

Specifikacija
Download

Model No.	Indoor unit			ASYG09LU	ASYG12LU	ASYG14LU
Model No.	Outdoor unit			AOYG09LU	AOYG12LU	AOYG14LU
Power Source			V/Ø/Hz	230/1/50	230/1/50	230/1/50
Capacity	Cooling		kW	2.5 (0.5-3.2)	3.5(0.9-4.0)	4.2(0.9-5.0)
Capacity	Heating		kW	3.2 (0.5-4.2)	4.0(0.9-5.6)	5.4(0.9-6.0)
Input Power	Cooling/Heating		kW	0.555/0.680	0.905/0.930	1.235/1.380
EER - Energy Class	Cooling		W/W	4.50-A	3.87-A	3.40-A
COP - Energy Class	Heating		W/W	4.71-A	4.30-A	3.91-A
Running Current	Cooling/Heating		A	3.1/3.4	4.6/4.7	5.8/6.3
Moisture Removal			I/h	1.3	1.8	2.1
Noise (Indoor)	Cooling	H/M/L/Q	dB(A)	42/36/32/21	43/37/32/21	45/40/33/25
Noise (Outdoor)	Cooling		dB(A)	48	50	50
Airflow Rate (Hight)	Indoor/Olutdoor		m3/h	800/1.720	850/1.940	900/1,940
Net Dimension H x W x D	Indoor		mm	282x870x185	282x870x185	282x870x185
	Indoor		kg(lbs)	9.5 (21)	9.5 (21)	9.5 (21)
	Outdoor		mm	540x660x290	540x790x290	540x790x290
	Outdoor		kg(lbs)	25 (55)	33 (73)	34 (75)
Piping connections (Small/Large)			mm	6.35/9.52	6.35/9.52	6.35/12.7
Drain Pipe Diameter (Inner / Outer)			mm	16/29	16/29	16/29
Max Pipe Length (Pre-Charge)			m	20 (15)	20 (15)	20 (15)
Max Height Difference			m	15	15	15
Opearation Range	Cooling		°CDB	-10~43	-10~43	-10~43
Opearation Range	Heating		°CDB	-15~24	-15~24	-15~24
Energy Efficiency Class	Cooling			A++	A++	A++
Energy Efficiency Class	Heating (Average)			A+	A+	A+
Refrigranat				R410A	R410A	R410A
